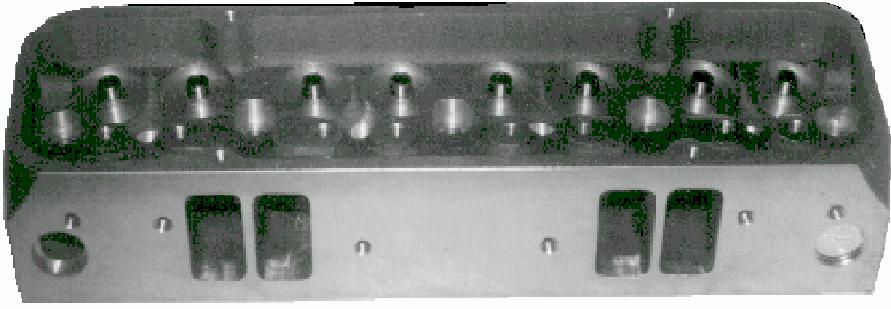

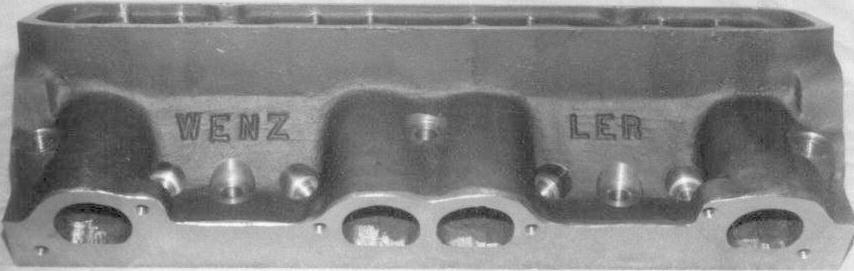

Now -- Re-designed to give you the ultimate in performance potential !!
- Totally redesigned intake and exhaust ports
- 2 degree "splayed" intake pushrods = no pushrod bulge
- 288 CFM flow at 28" and .600 lift
- Flow capability of 325 CFM with no welding
- More metal added above the port to allow additional intake port raising
- Intake port opening dimensions of 2 5/16" tall by 1 1/4" wide
- Thicker and taller valve seats
- Beefy - Thick decks
- Room to run 2.19" intake and 1.82 exhaust valves with no additional machining
- Completely compatible with stock valve train components
- Chamber volumes anywhere from 60 to 90 c.c.'s
- Exhaust accepts round port headers / manifolds
/ $500 deposit required
Now only $1,300
New price offer.
Now order a set of heads and T&D rocker shaft system for only $1,995.00
Heads without rocker shaft system - ONLY $1,100.00
Check out the deal on complete heads. Click on the more photos link below.
Heads include seats, guides and guide plates
Click here for more photos
